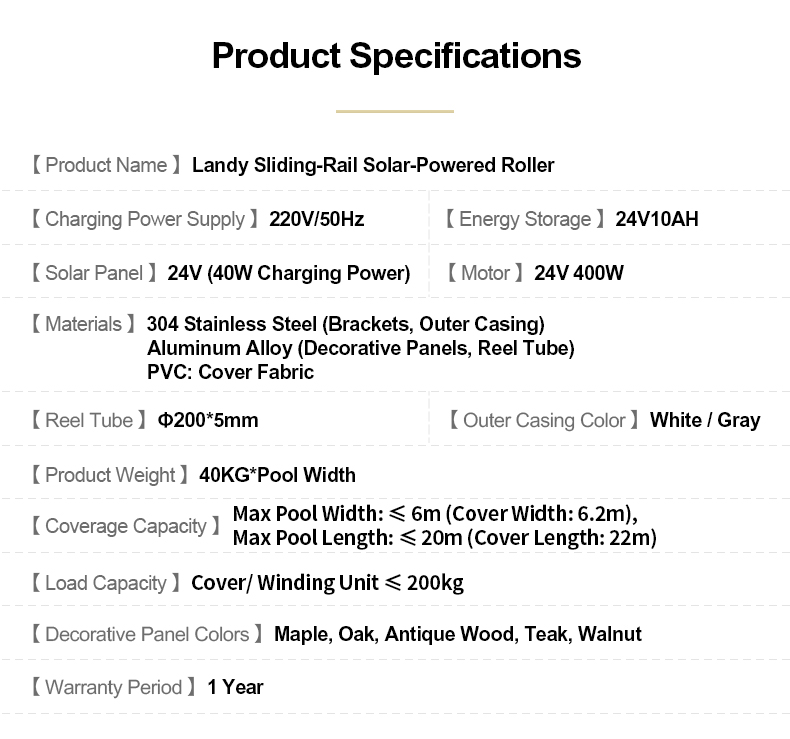

| Recharge the power supply | 220V/50Hz |

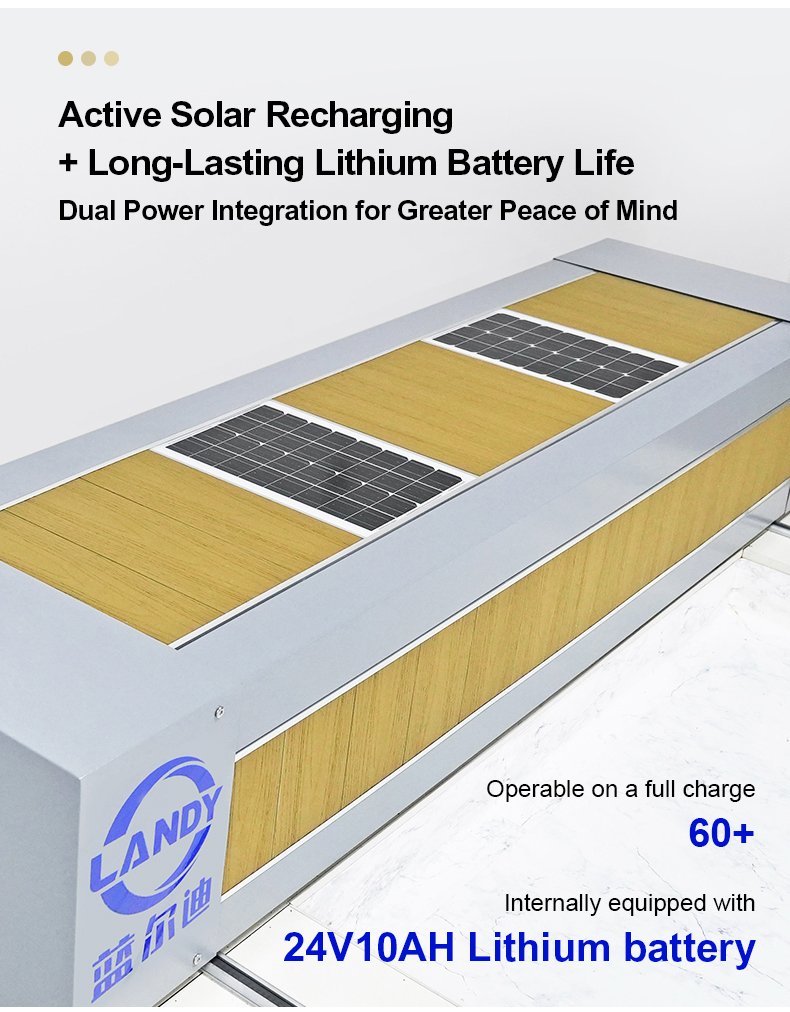

| Disposable batteries | 24V 10AH |

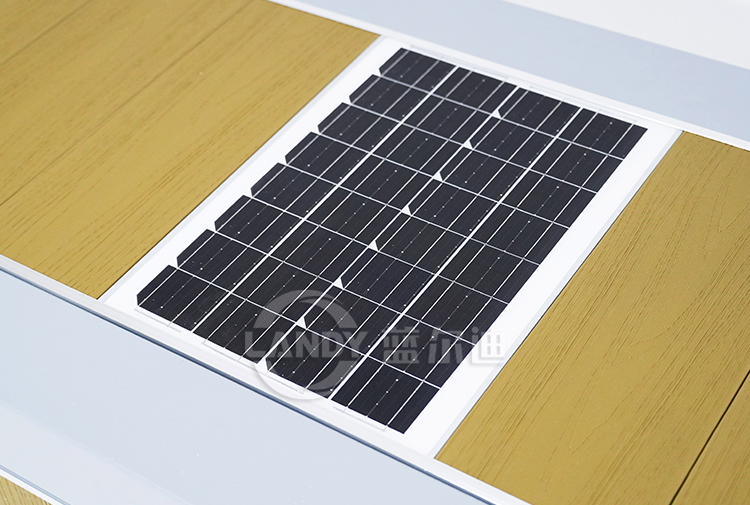

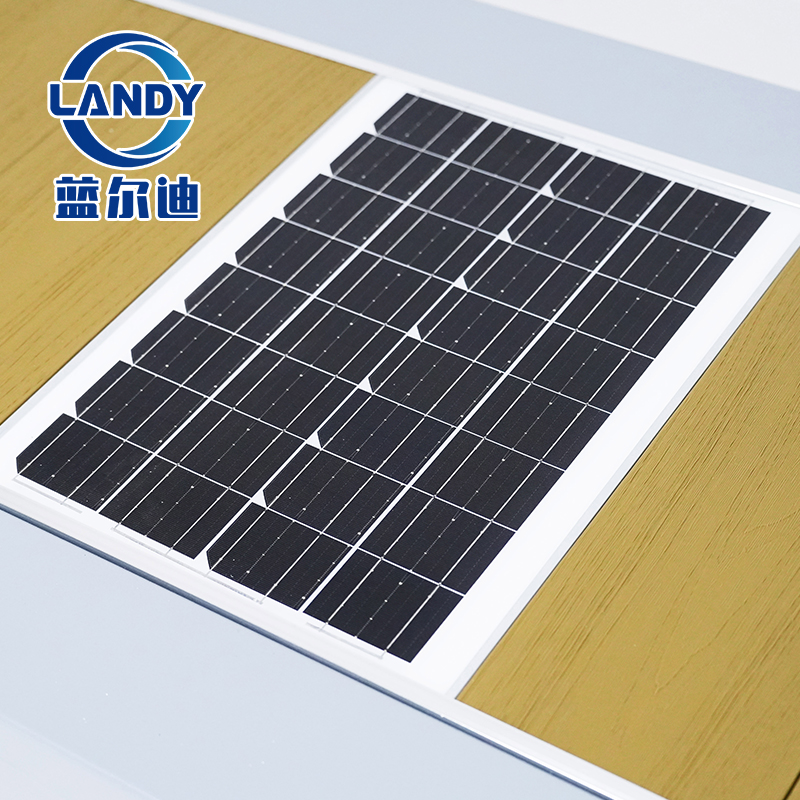

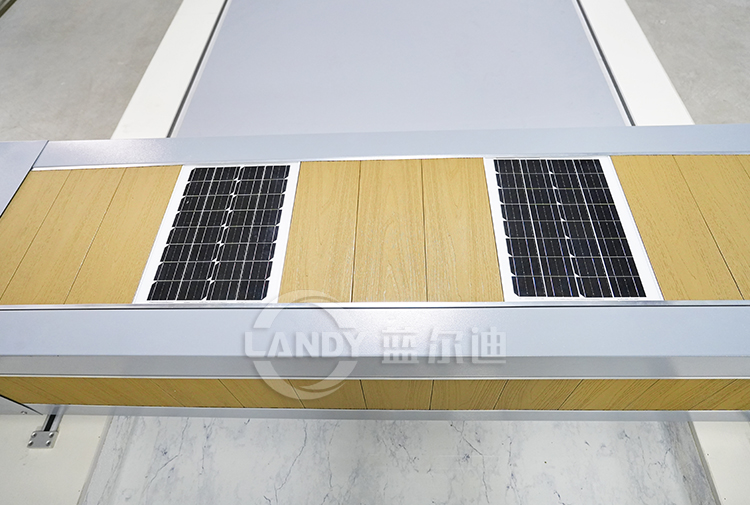

| Solar Panel | 24V Charging Power 40W |
| Motor | 24V 400W |
| Material | 304 stainless steel, Aluminum alloy |
| Curve pipe | 200*5mm |
| Host Specifications | Width 620mm x Height 430mm, height after lifting is 480mm |
| Coverage Width | ≤6M |
| Coverage Length | ≤20M |
| The covers carry weight | ≤200KG |
| Heavy weight of the mainframe | ≤200KG |
| Outer Cover Color | white/grey |
| Color options | Maple, Oak, Antique, Teak, Walnut |

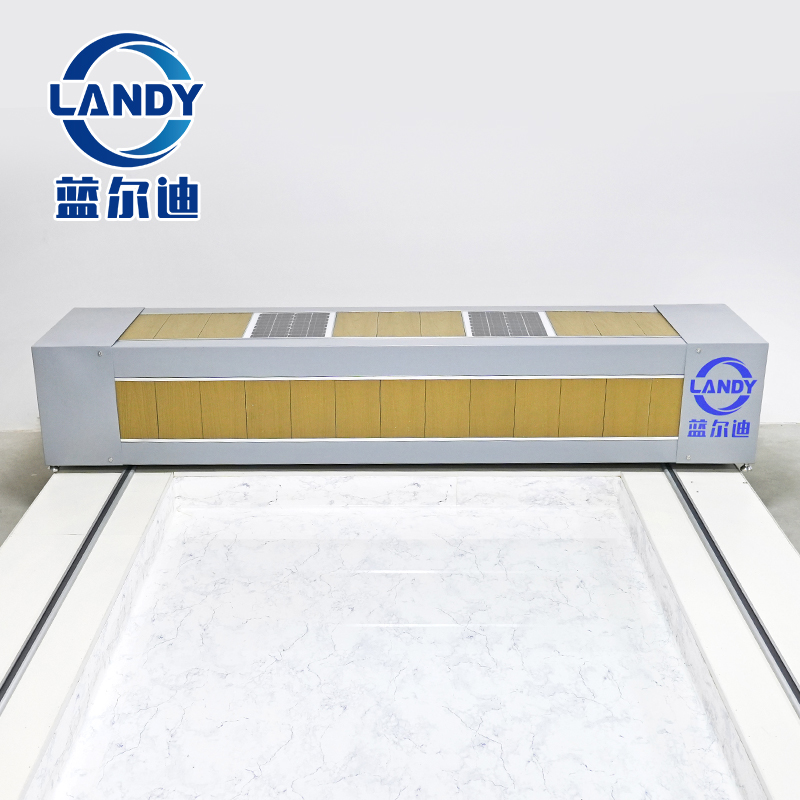

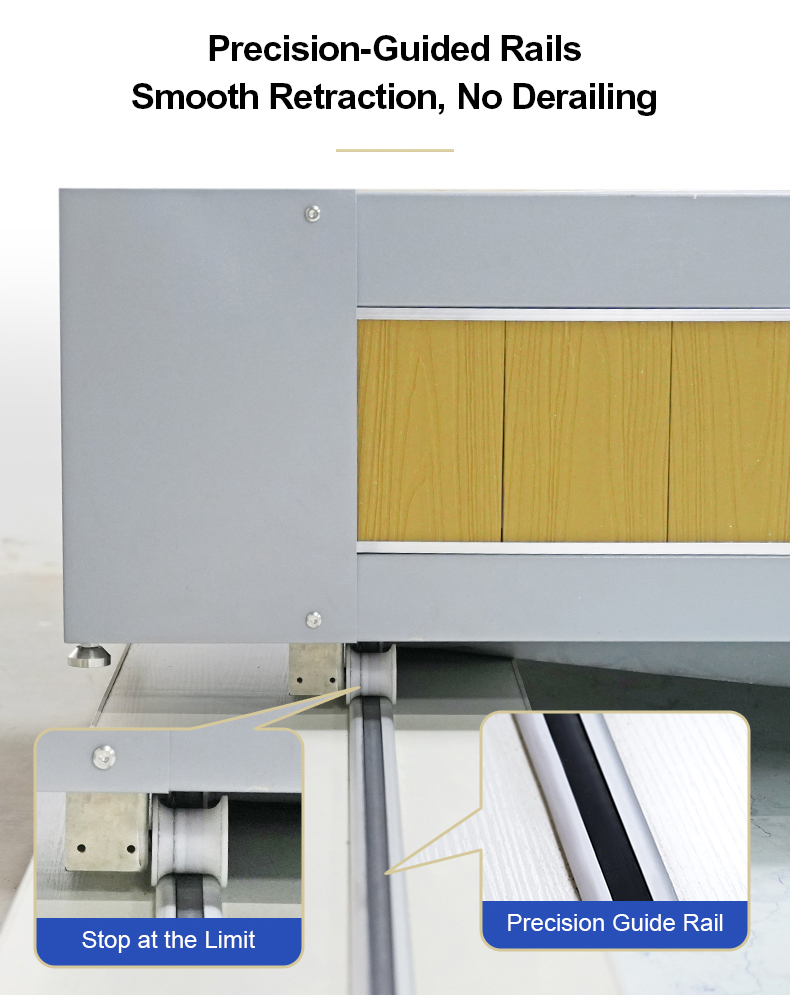

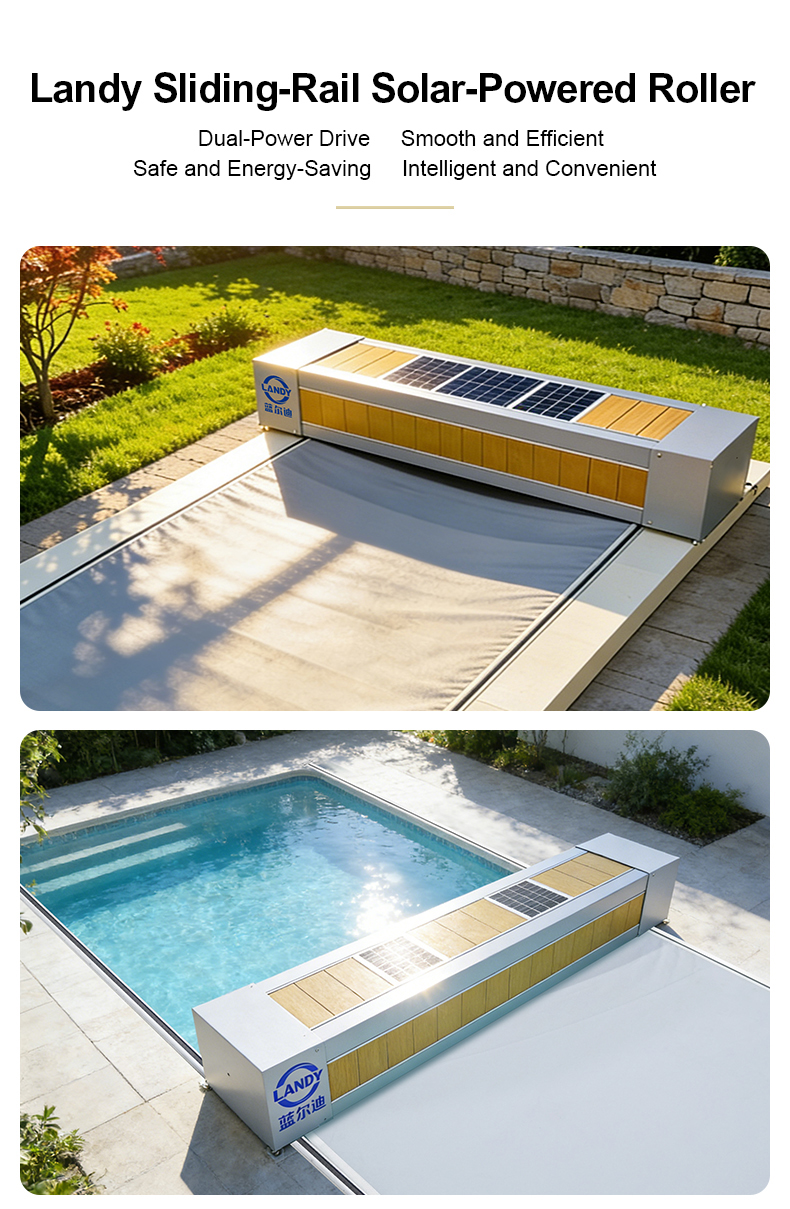

The main applications of the sliding rail type solar-powered winding machine are small swimming pools.

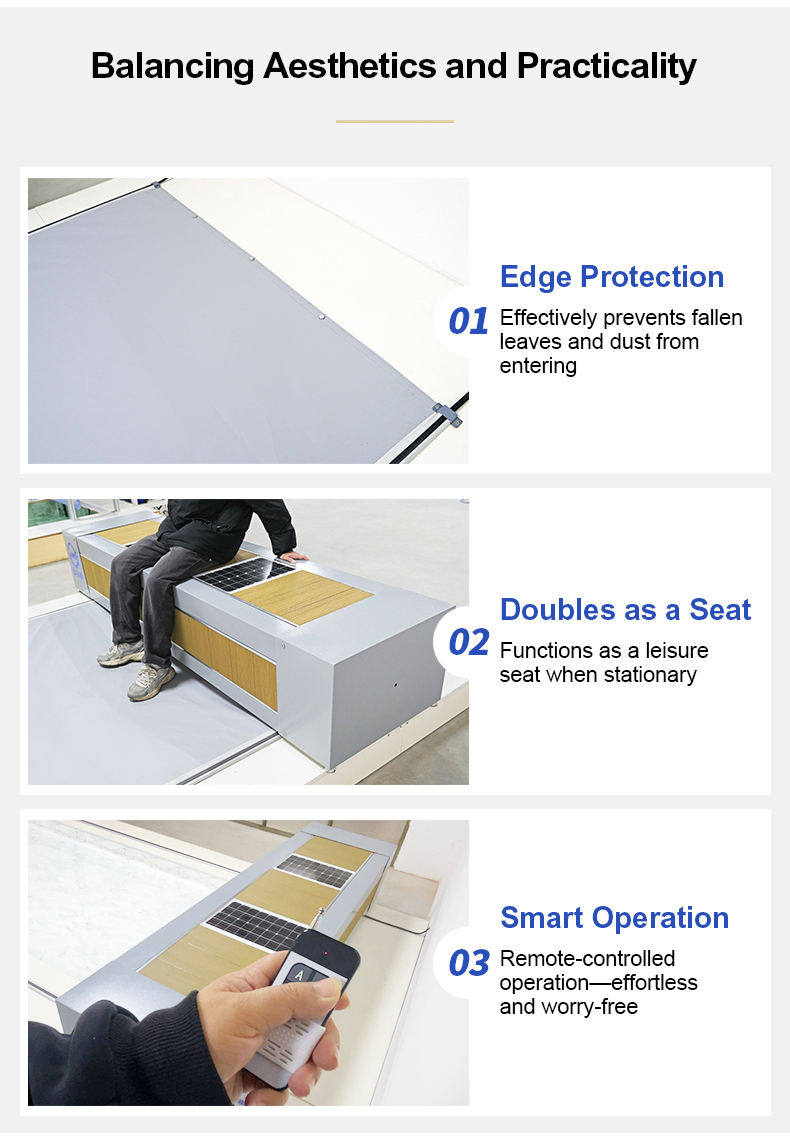

The advantages of a sliding rail solar-powered rewinder are that it can be used in outdoor environments without power, its close proximity to the ground provides excellent protection against water, it has a certain load-bearing capacity, and people can stand directly on top of the cover cloth, which can also be used as a seat.

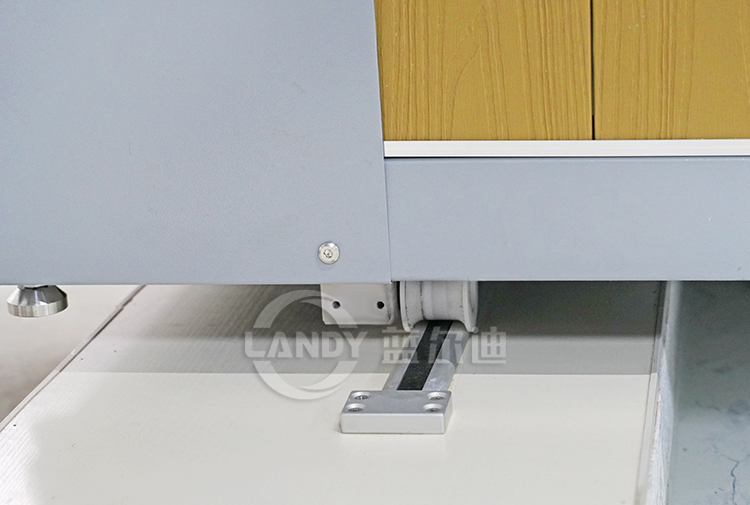

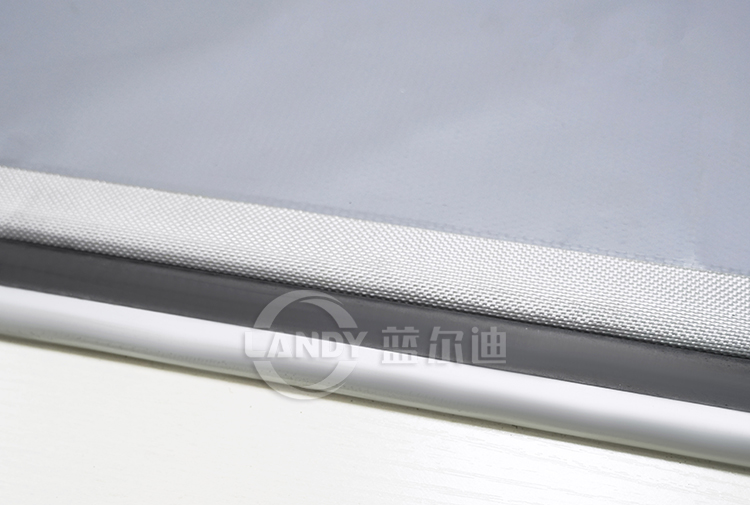

This winding machine is a swimming pool mesh PVC pipe cover winding machine. It lays the cover flat by moving as a whole. Before moving, the outer cover needs to be raised as a whole. It can only be used as a seat when stationary. The open and closed states are 100mm away from the edges of the pool at both ends.
Q1What is the maximum width of the pool cover?
The swimming pool can be up to 3 meters wide, and the cover fabric needs to be 3.2 meters wide. This is limited by the size of the cover fabric material and the equipment structure.
Q2What is the maximum length of the pool cover?
The swimming pool is up to 10 meters long, and the cover needs to be 12 meters long. This configuration is required due to limitations in equipment height and cover thickness.
Q3What packaging method is used for shipping the product?
We use wooden crates for packaging. First, we wrap the equipment with heat-insulating materials, and then we put it into a wooden crate for shipment to ensure safety and protection during transportation.
Q4What are the dimensions of the wooden crate?
The dimensions of the wooden crate (unit: mm) are calculated as: (equipment length + 200) × 800 × 800.
Q5What materials are used to construct the mainframe?
The roller system is built using durable 304 stainless steel and high-grade aluminum alloy to ensure excellent structural strength and rust resistance in wet pool environments.

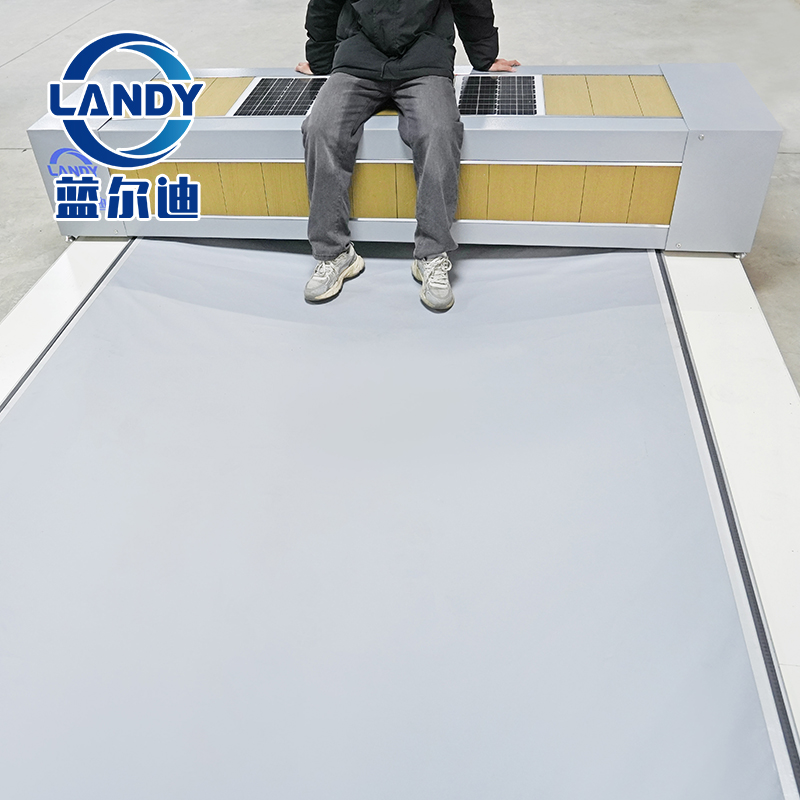

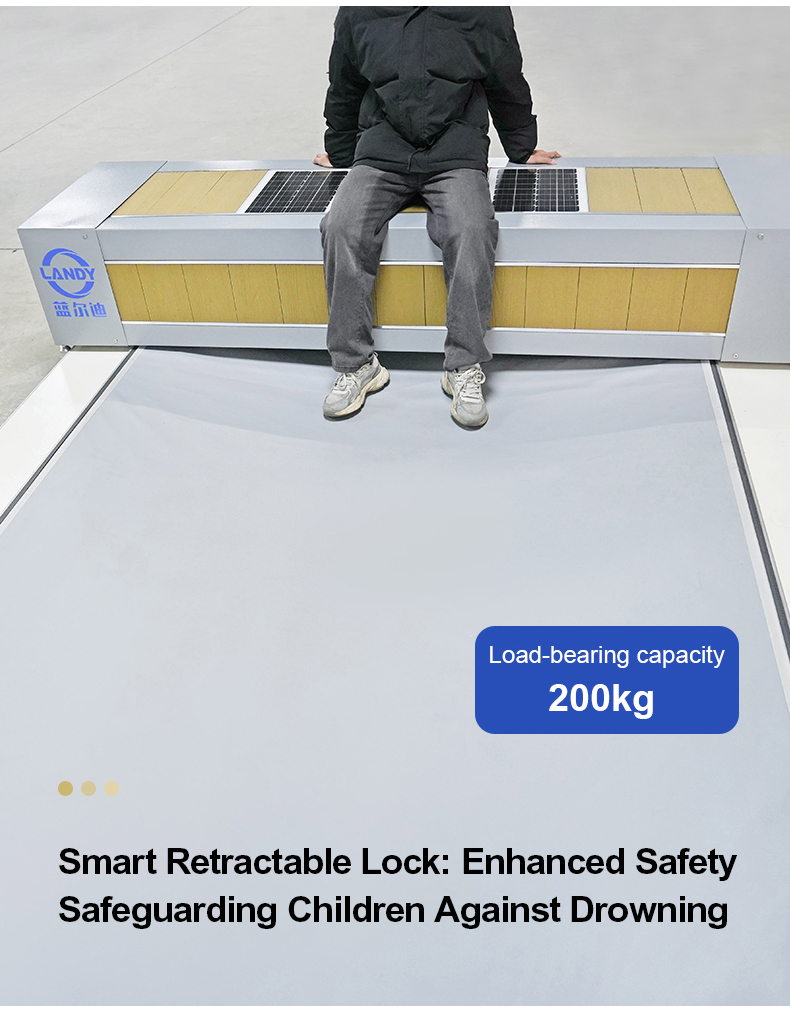

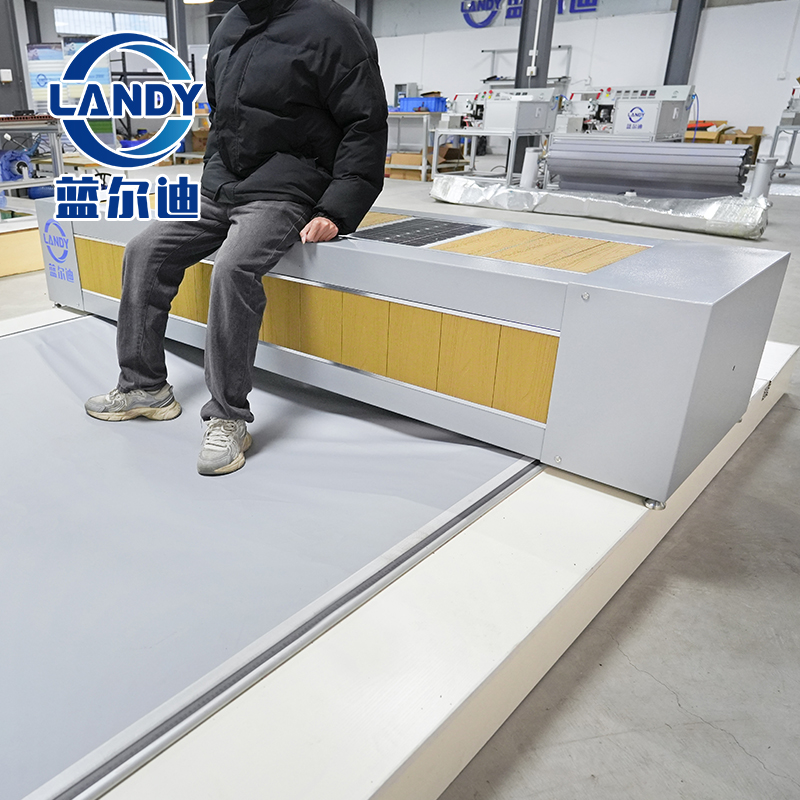

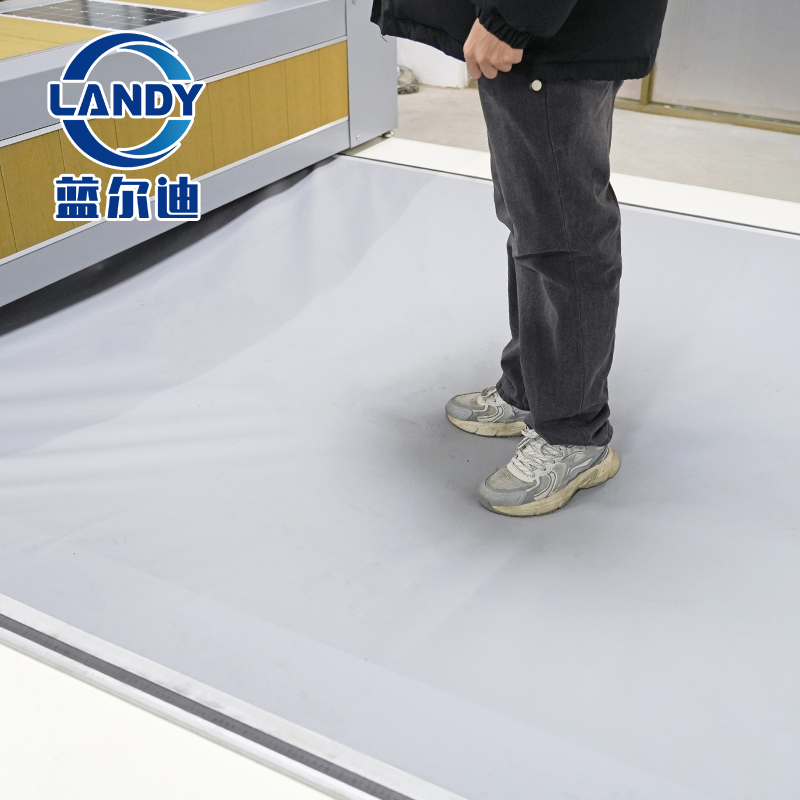

Q6Can people stand or sit on the pool cover?
Yes, the cover is designed with a weight-bearing capacity of up to 200KG. When the machine is stationary, people can stand directly on top of the cover cloth, and it can also function as a seat.
