1 / 5

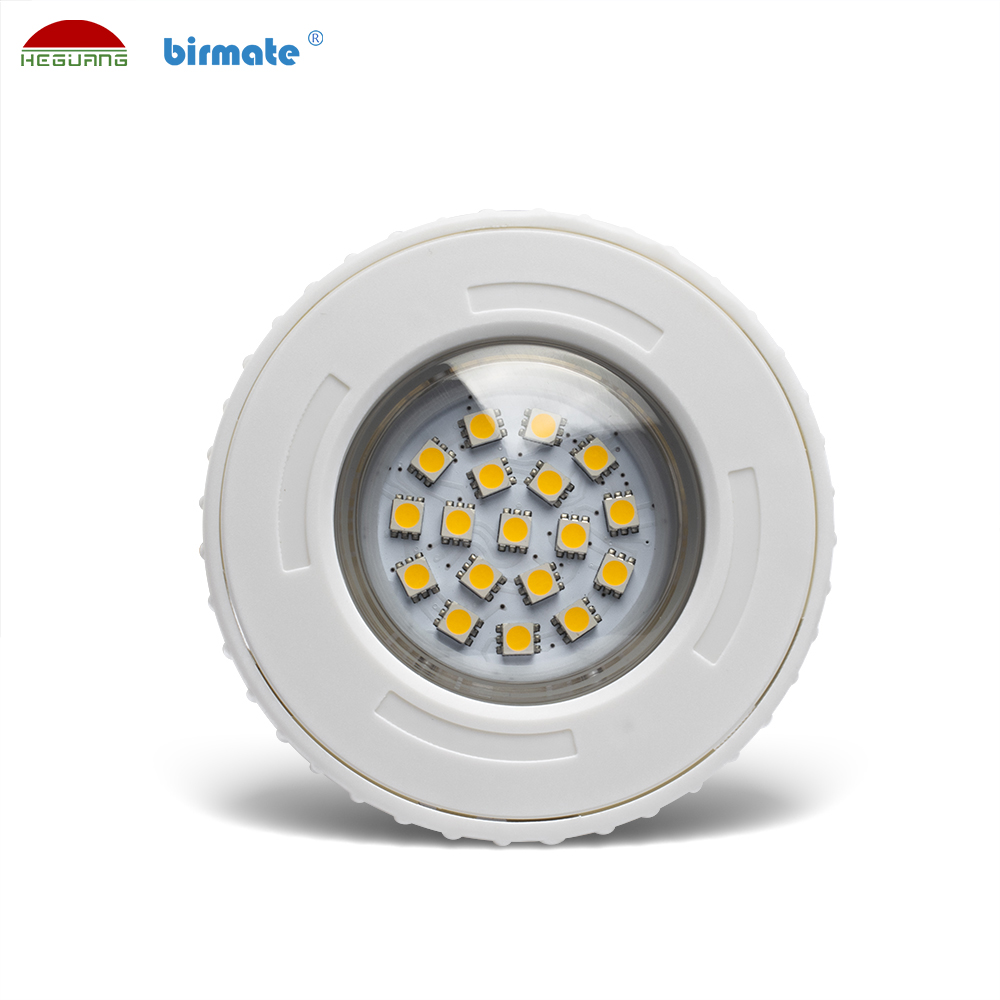

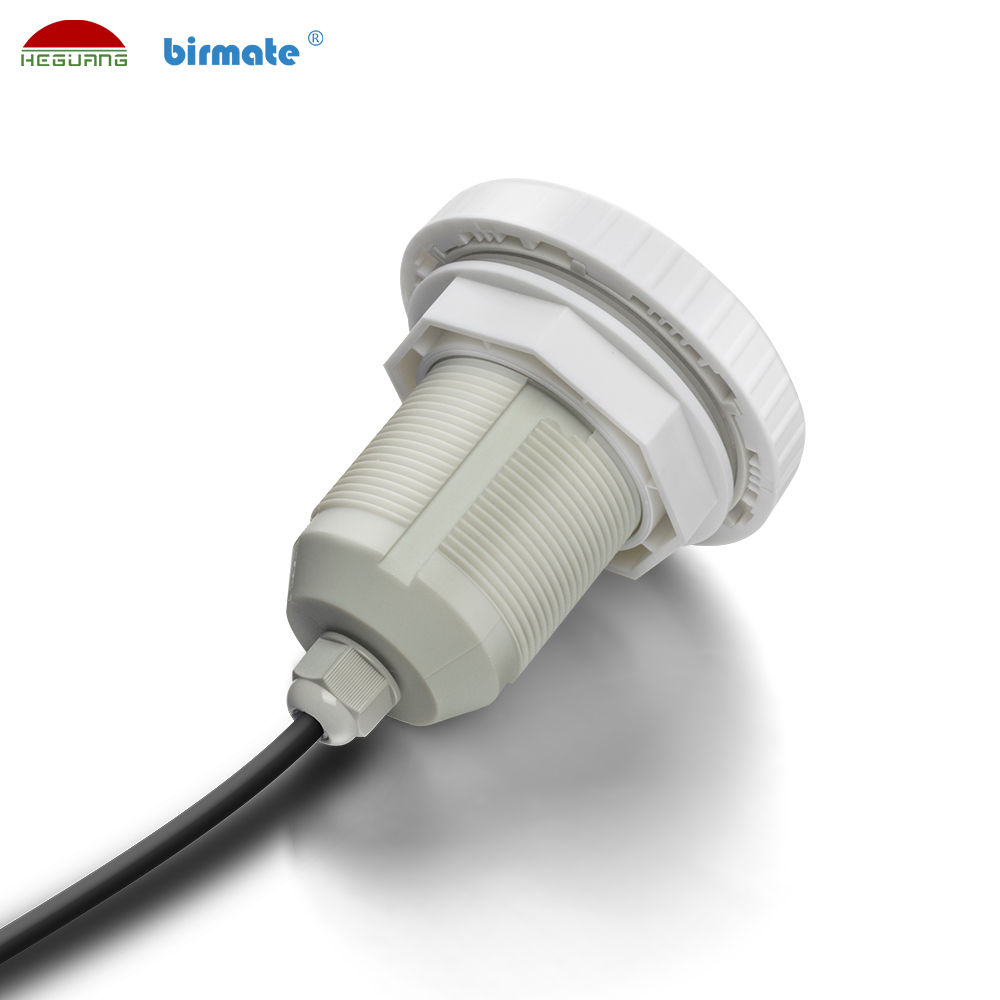

| HG-PL-3W-V1 Specifications | ||
|---|---|---|

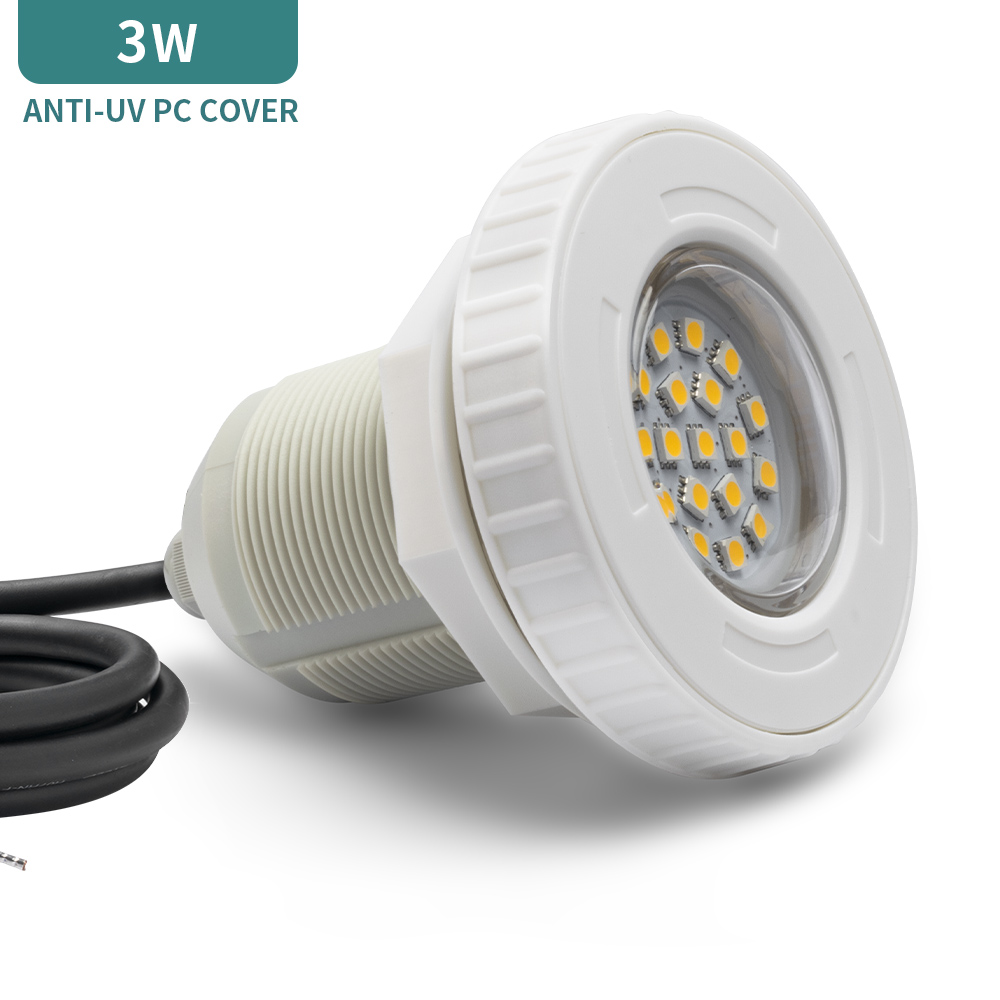

| Lamp Parameter | Material | Plastic + Transparent PC cover |

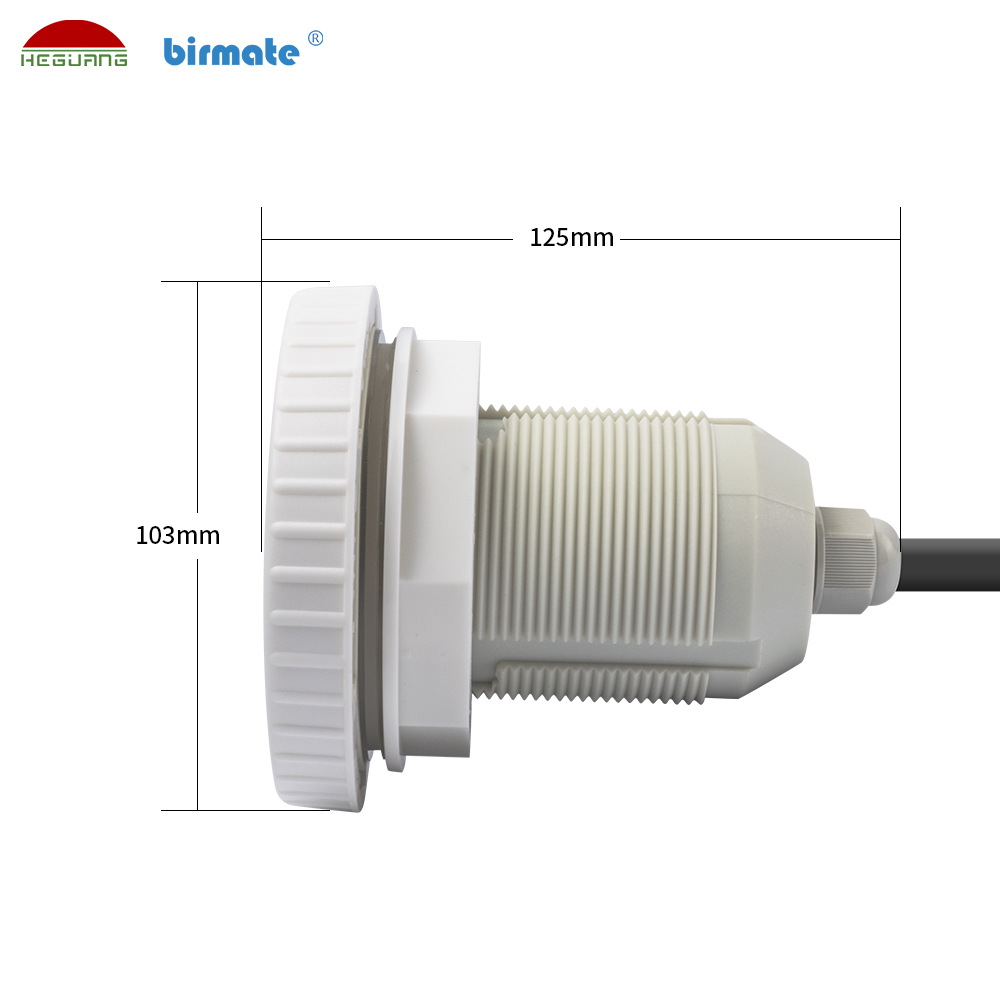

| Light Dimension | Φ103 × 125mm | |
| Input Voltage | AC12 / DC12V | |
| Wattage | 3±1W | |
| Light Lumen | 180LM±10% | |
| Halogen Replacement | 15W | |
| Beam Angle | 120° | |
| Base | Wire out | |
| CCT | Pure White: 6500±10% | Warm White: 3000K±10% | Customized / RGB | |
| Specifics | Operating Temperature | -20 ~ 40℃ |
| IP Rating | IP68 Waterproof | |
| Certificate | CE, ROHS, FCC, IP68, VDE | |
| Life-span | 50,000 hours | |
| Warranty | 2 Years | |
| Remarks | Connect Coil Transformer | Must be coil transformer |
| Waterproof Ring | Must install correctly to achieve IP68 rating | |
| Underwater Temperature Test | Test Position | LED Surface Mounted Swimming Pool Light (Min) |
| Working Temp 28℃ | Underwater Test Time: 480 mins | LED Edge Temp: 63℃ | |
| Working Temp 40℃ | Underwater Test Time: 480 mins | LED Edge Temp: 72℃ | |

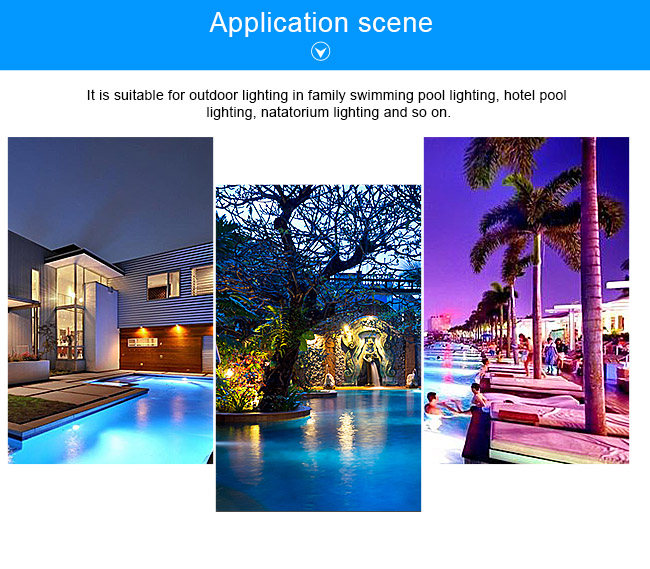

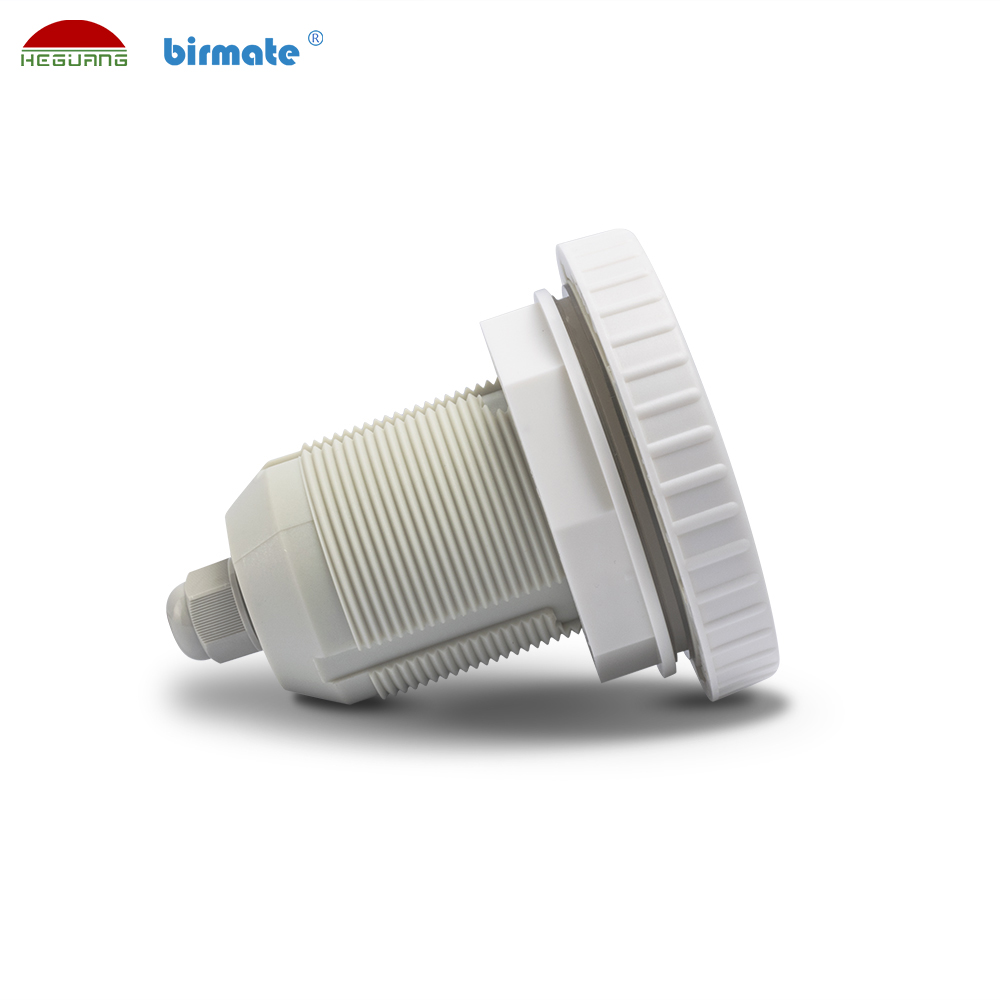

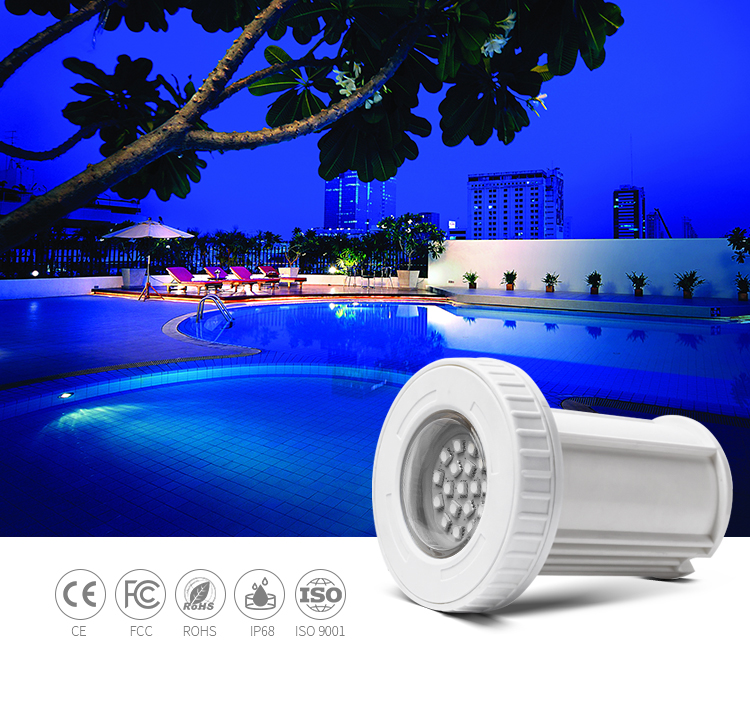

The HG-PL-3W-V1 swimming pool light with remote control is designed specifically for underwater installations in fiberglass pools and spas, offering IP68 waterproof performance.

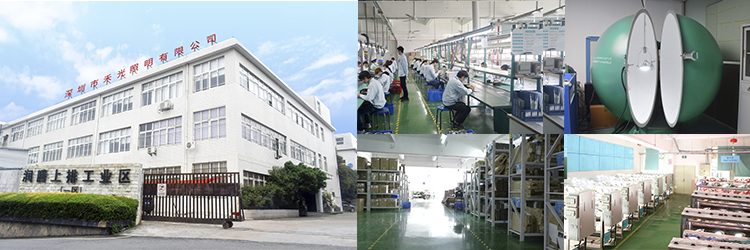

Since 2006, we have specialized in LED underwater product development and production. Occupying a factory area of 2,000 square meters, we are a high-tech enterprise and recognized as a leading supplier with UL certification in the LED swimming pool light industry.
Our focus remains strictly on quality first, continuously developing new products to match evolving market requirements, and providing comprehensive and professional product solutions.
