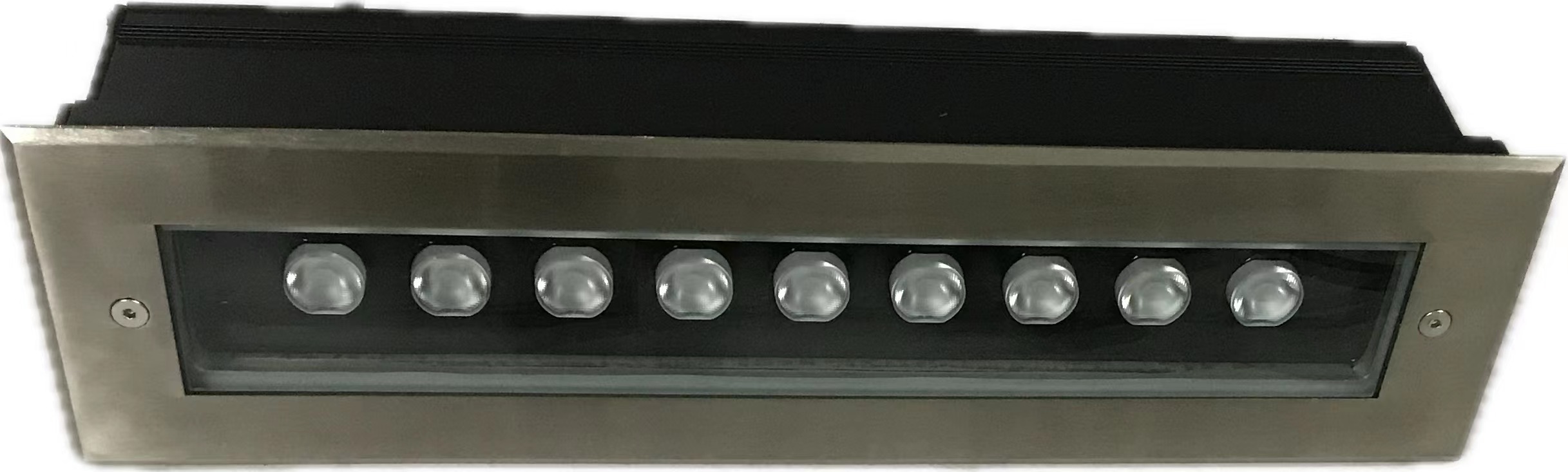

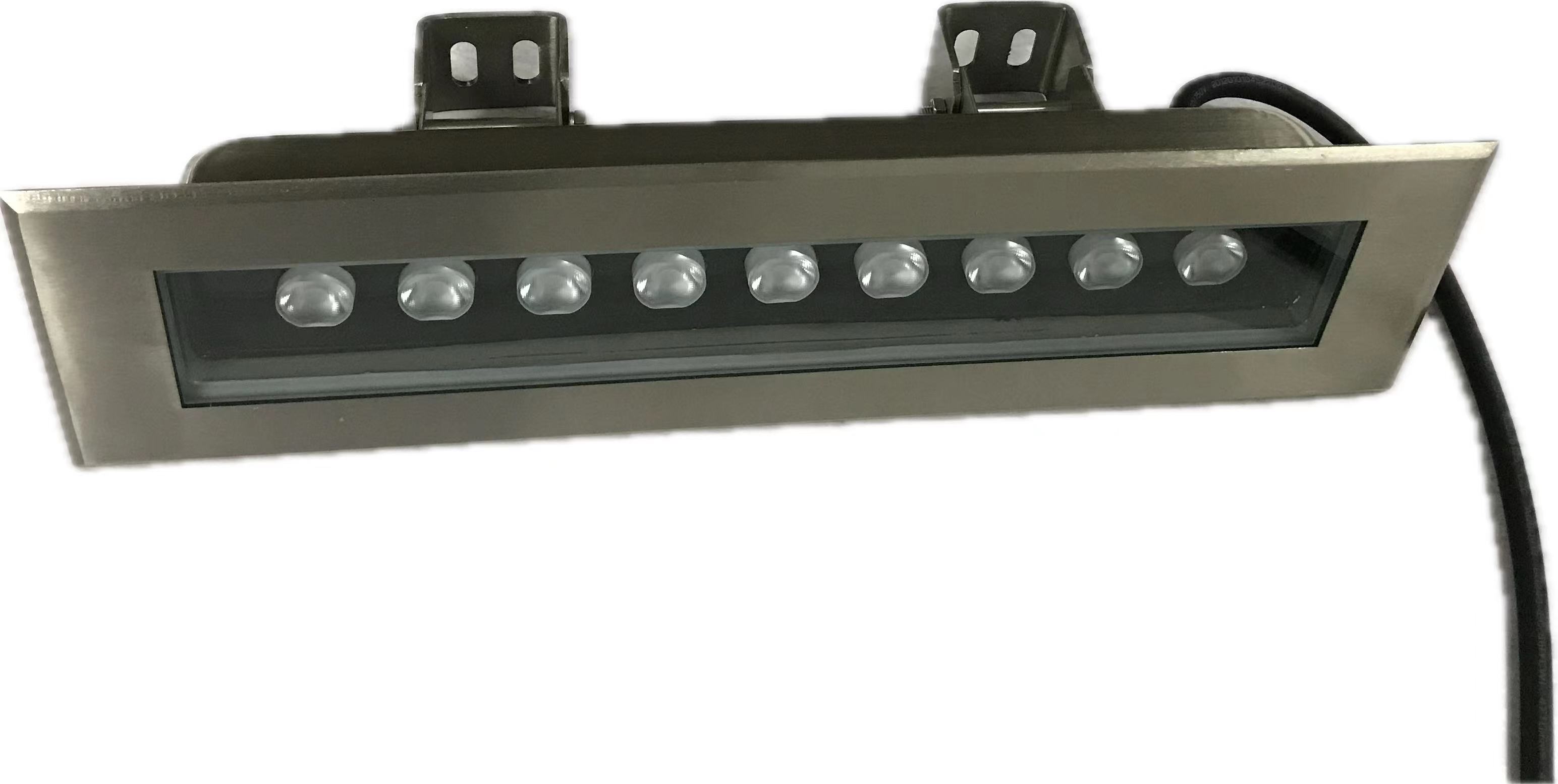

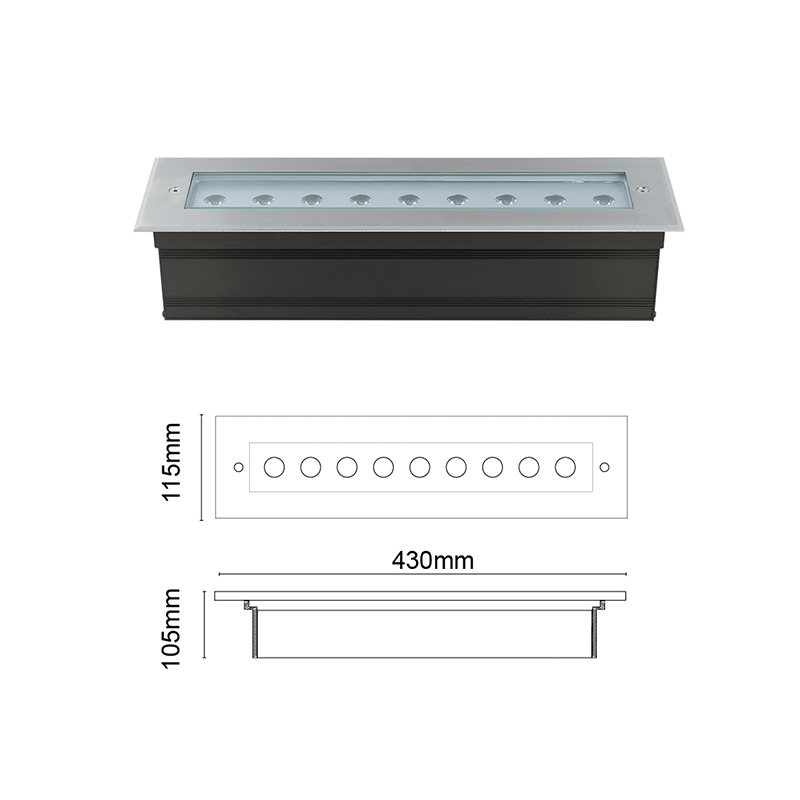

Underwater LED Lamp with RGBW and Dimmable Feature for Pool Landscape in Stainless Steel

Product Parameters

ITEM	Standard Version	Customs Option
Model	RX-UW430L-L-9D-RGB	RX-UW430L-L-9D-RGBW
Light Source	9*1.5W	9*2W
Housing	Stainless Steel AISI 304	Stainless Steel SUS 316L
Light Window	Tempered Glass T=10mm	-
Input Voltage	24V DC (universal)	12VDC/36VDC (OEM available)
IK/IP	IK08 IP68	-
Consumption	15W	15W
LED Driver	DMX/PWM	DMX/Auto/Manual
Lens	Optical Lens, efficiency ≥85%	-
Selected Degree	25°	15°/45°/60°
Luminance	1080LM	1080LM
Gasket	Silicone Gasket	-
Cable Gland	IP68 M16 copper with nickel-coated	IP68 M16 Stainless Steel 304
Cable	H05RN-F 4x0.75mm³ L=80cm	H07RN-F 4x1.0mm³ L=80cm
Operating Restrict	Temperature of water between -20°C~40°C, Less than 2 meters depth	-
PCB	Excellent heat conductivity aluminum, Coefficient of heat conductivity ≥2.0w/mk	-

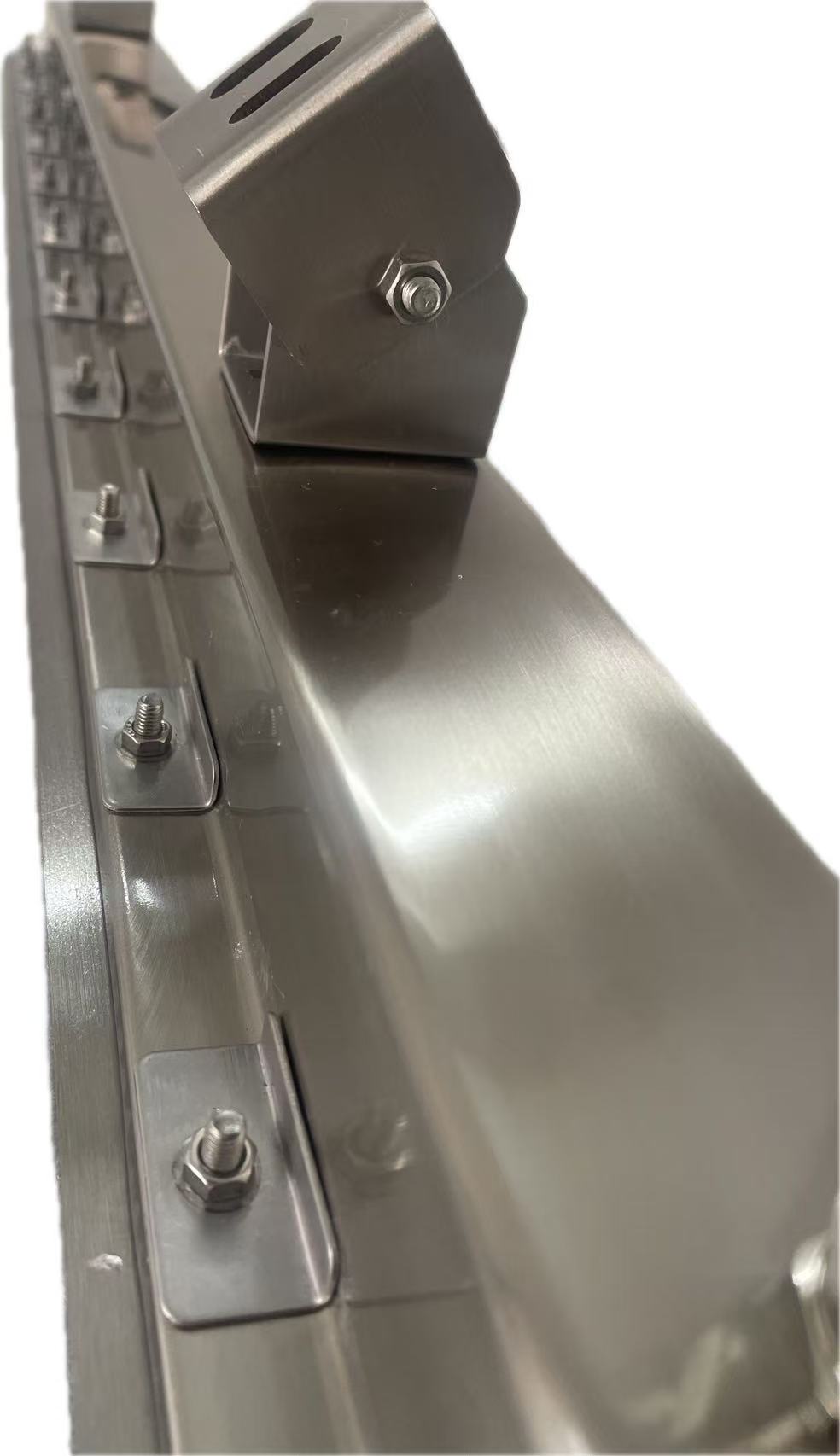

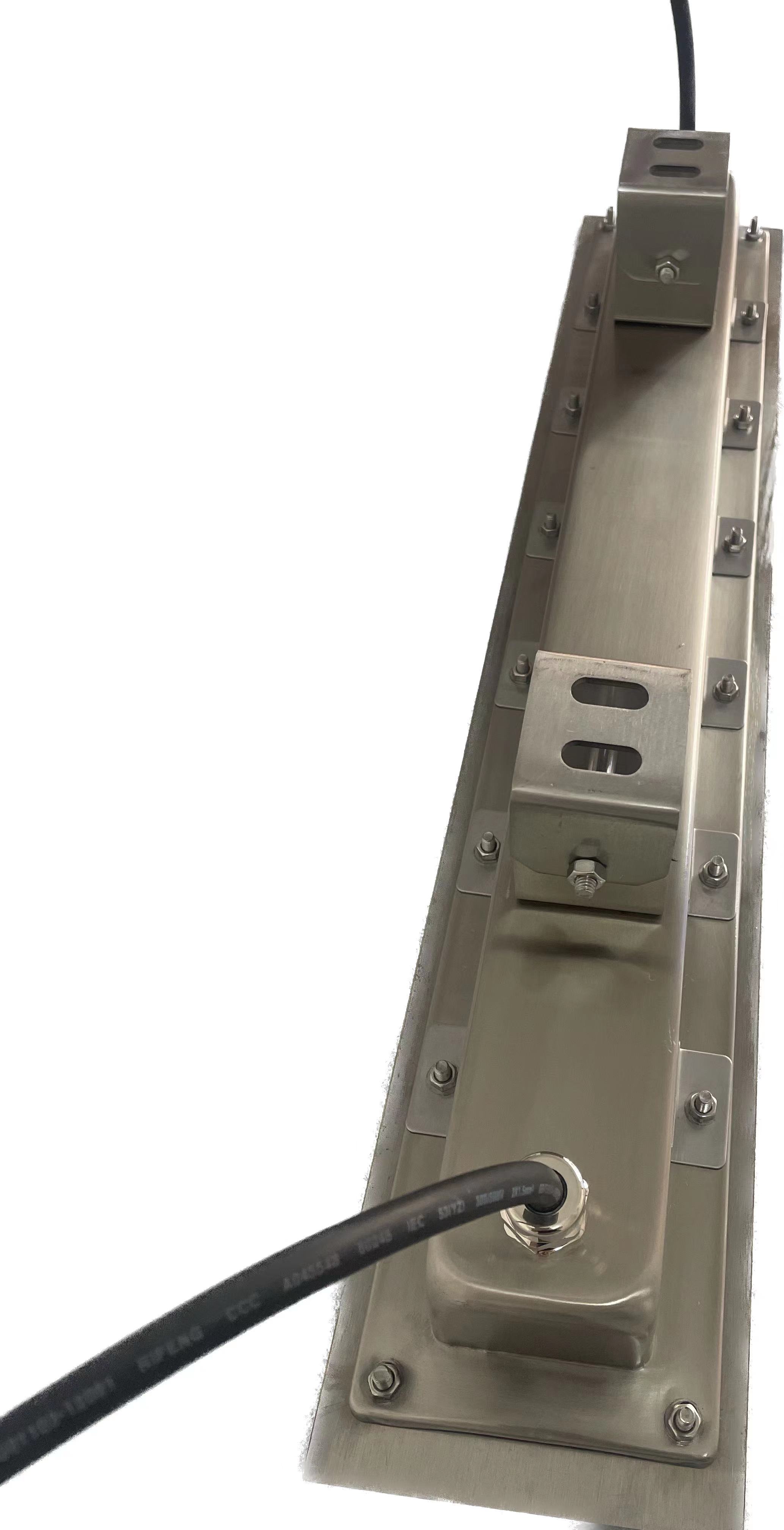

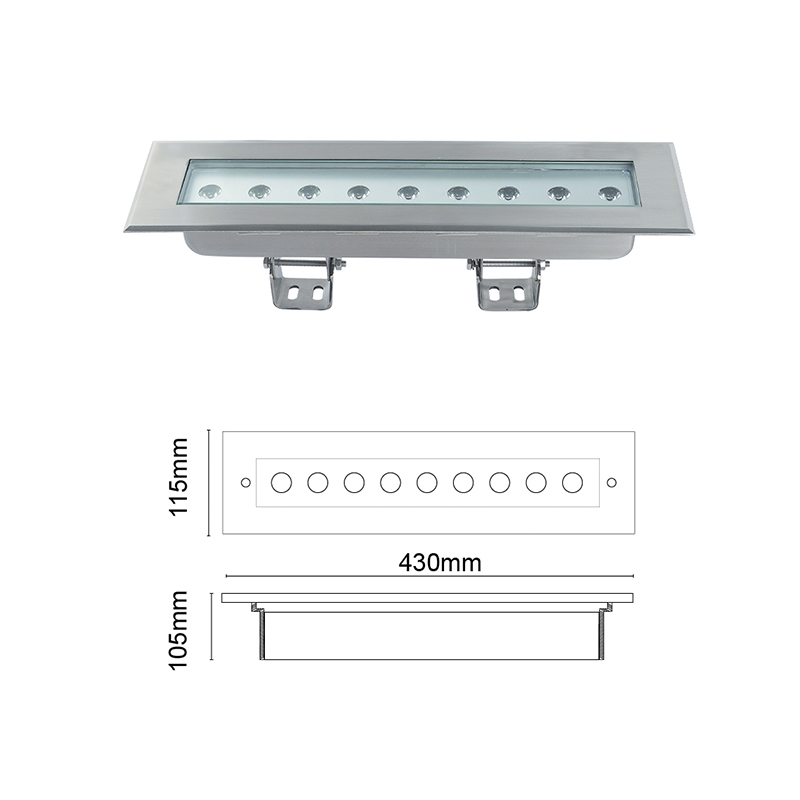

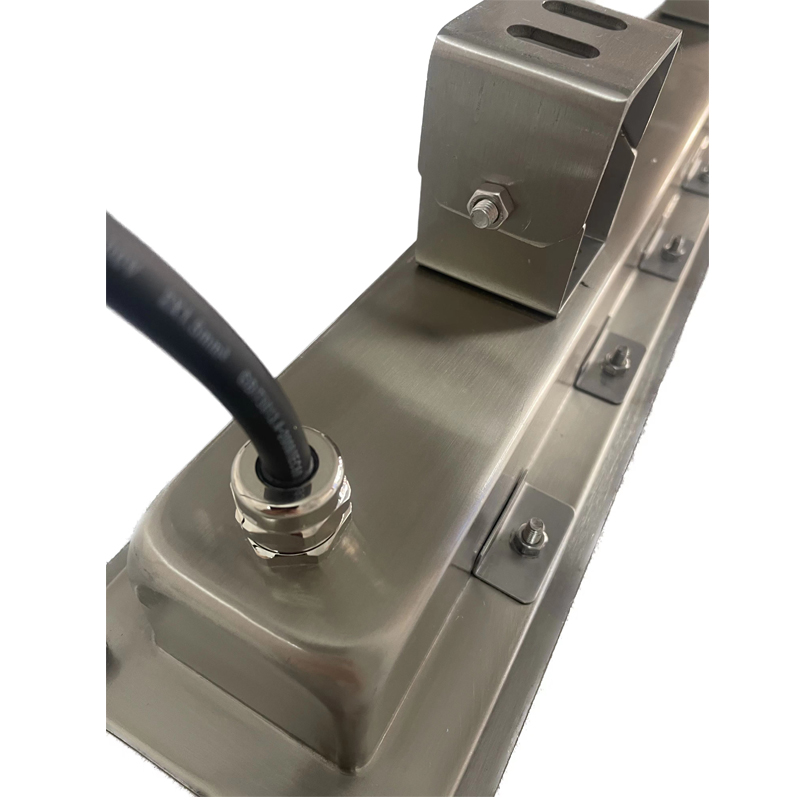

Details Images

Manufacturing Technique

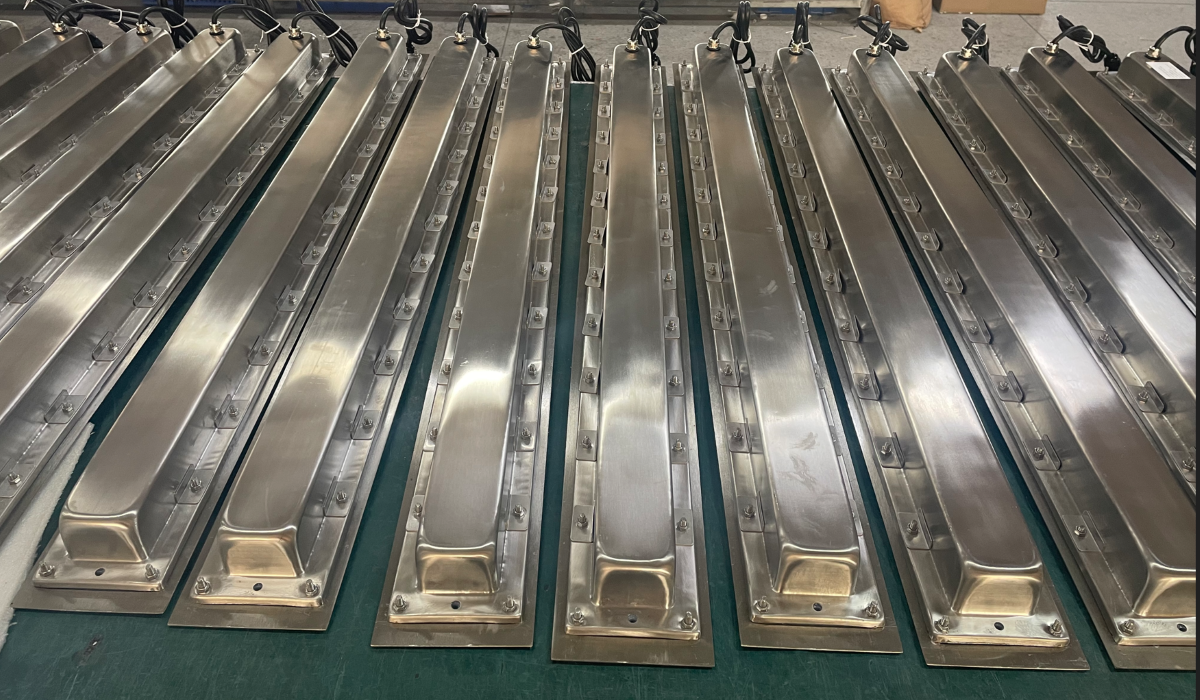

Housing Inspection

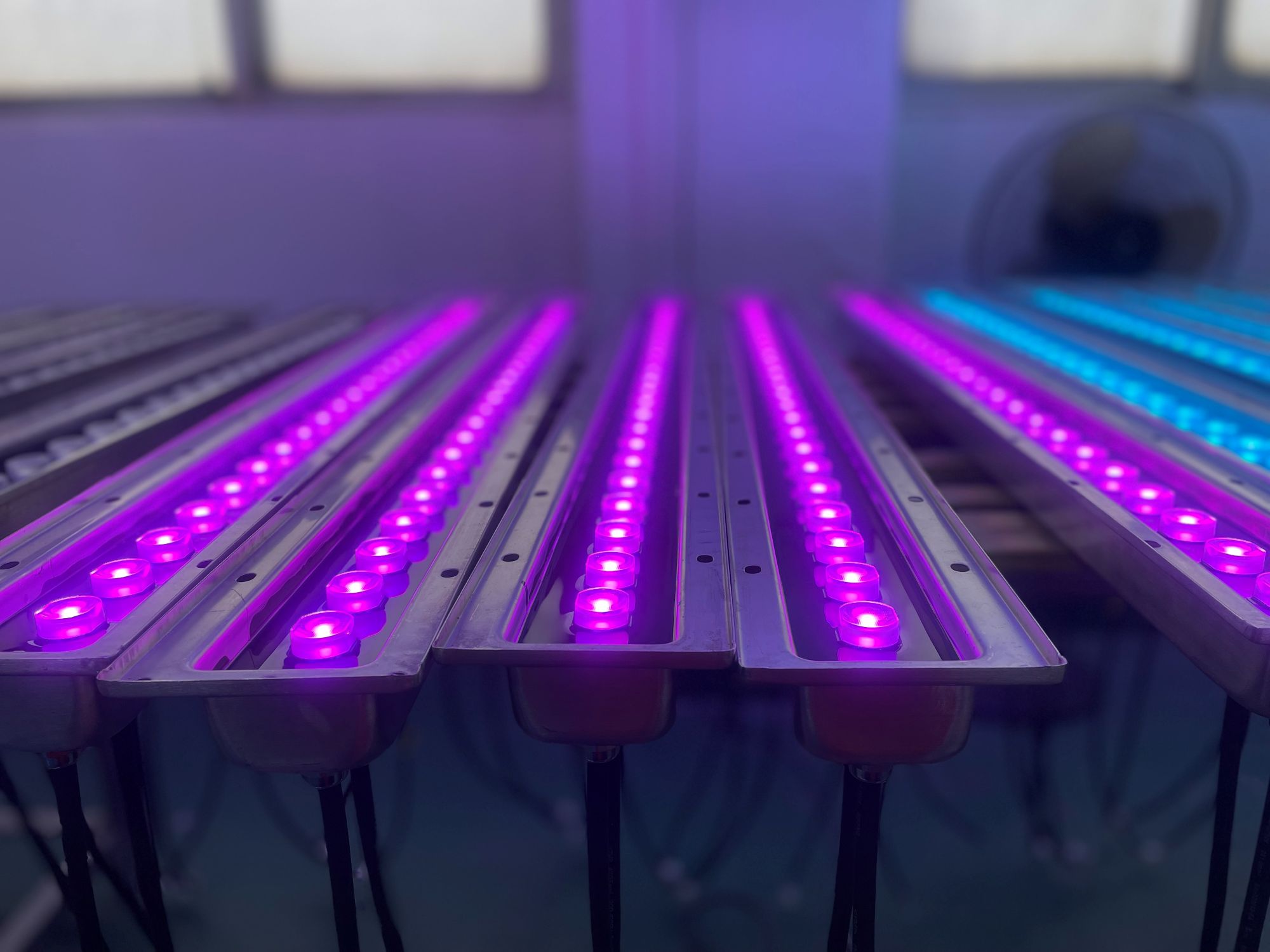

Second Test

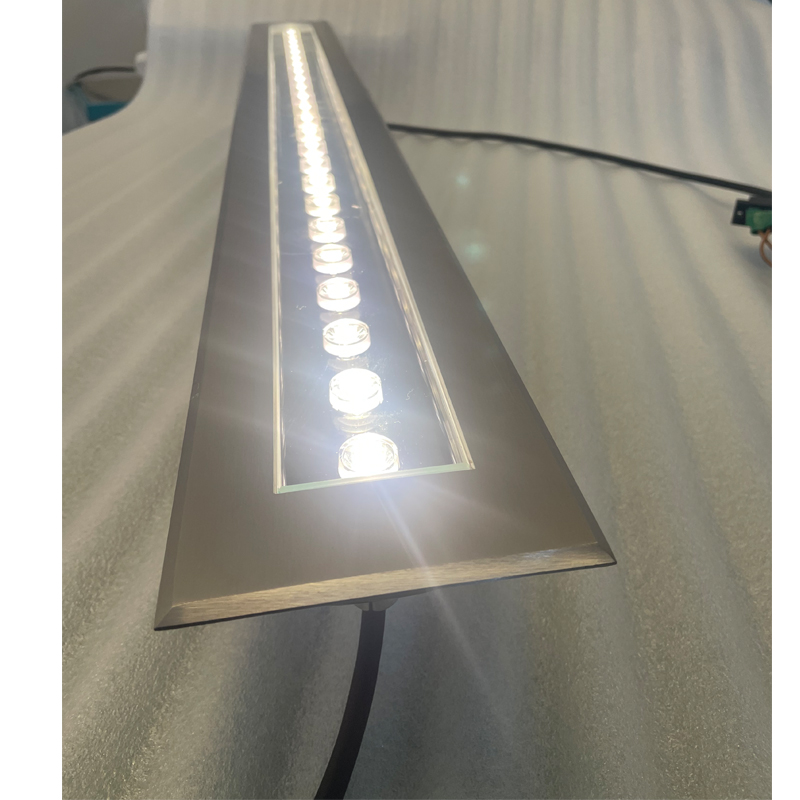

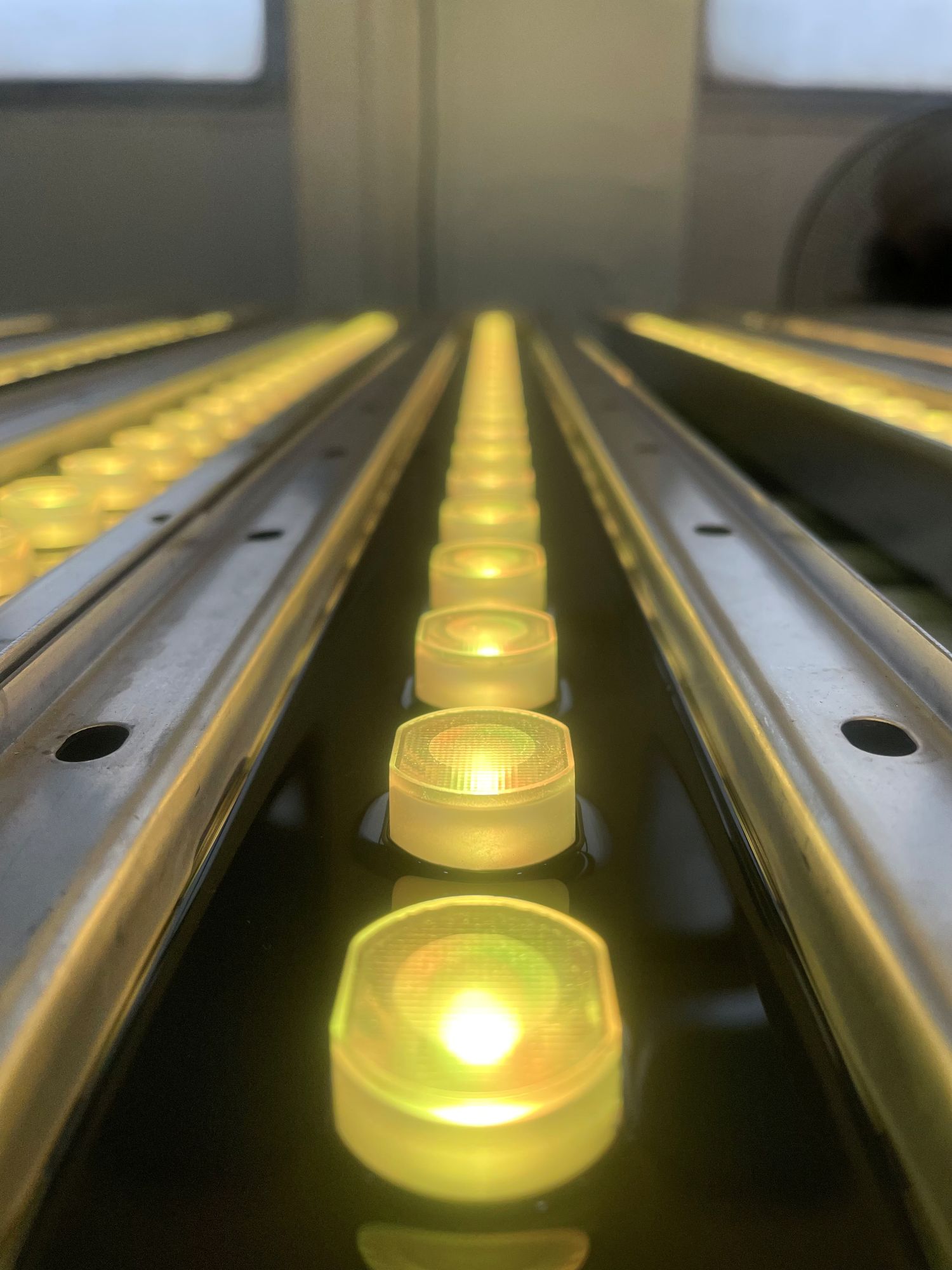

Testing before packaging

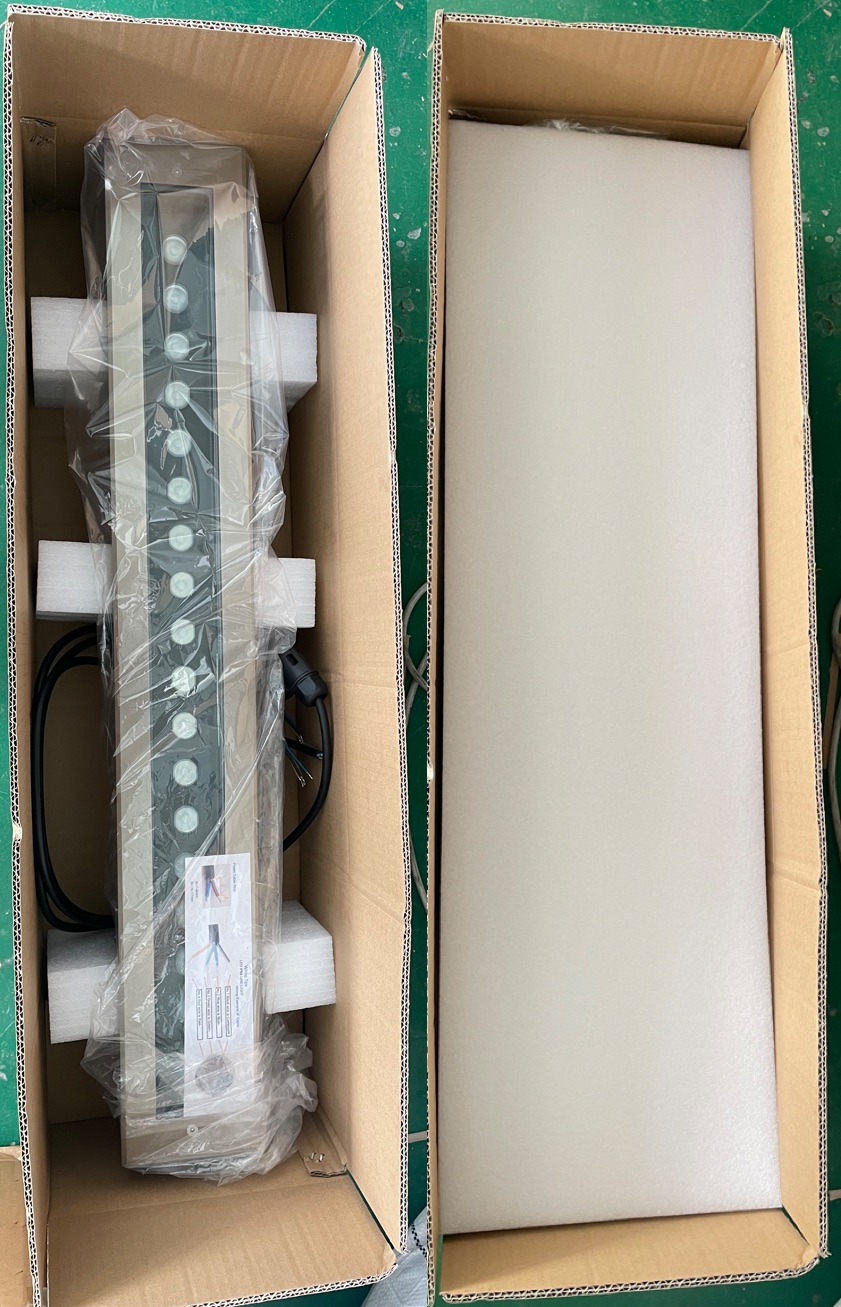

Product Packaging

1. Each lamp is individually packaged
2. Each independent package has pearl cotton all-round protection

3. Standard export carton. IK tested

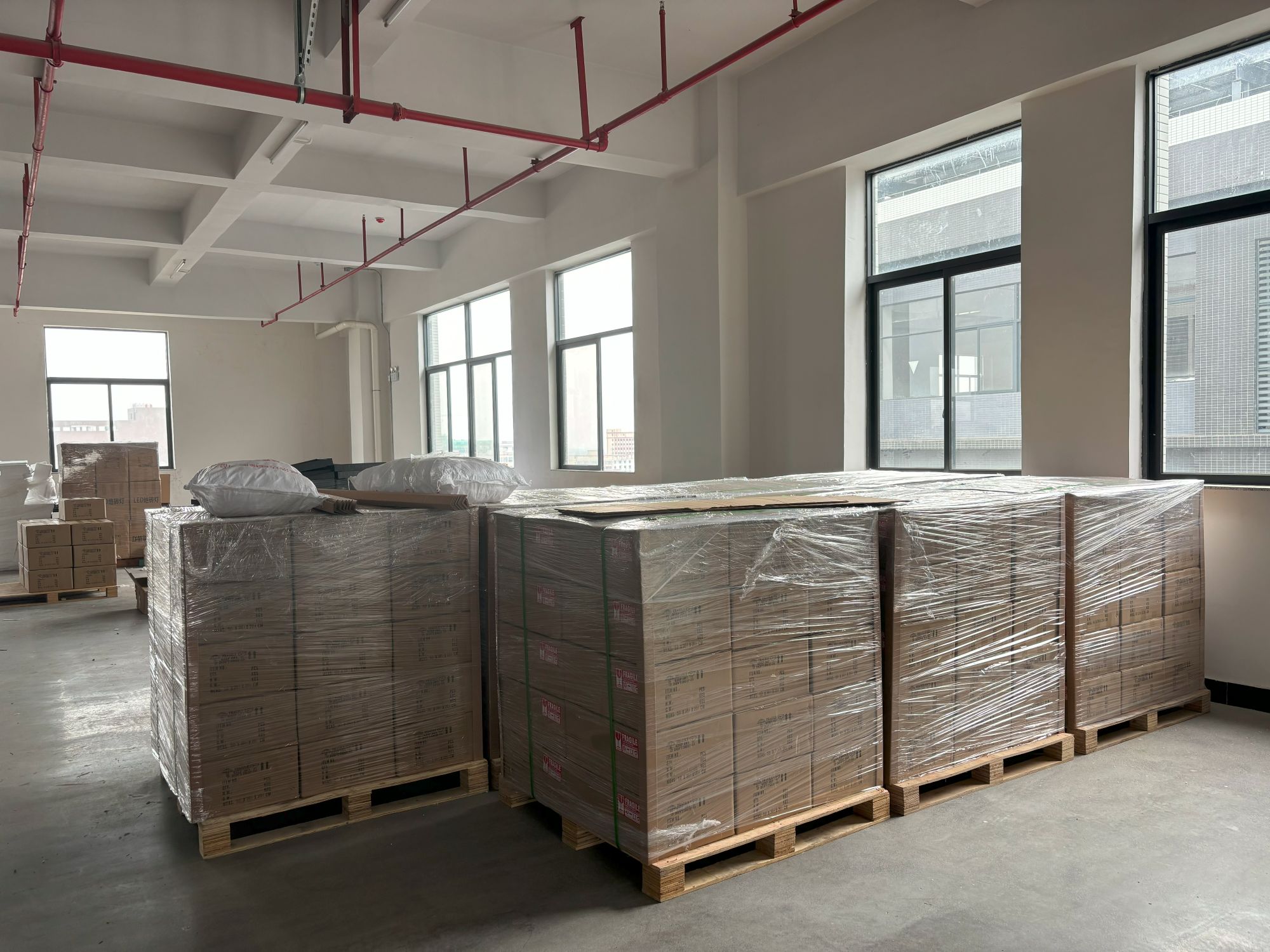

4. Heavy goods will be packed with pallets

Exhibition

After-Sales Service

Warranty Protection

We offer a 3-year warranty on our LED Light, ensuring your purchase is protected against manufacturing defects.

Technical Support

Our professional team is available to provide technical assistance and troubleshooting guidance should any issues arise.

Customer Satisfaction

We are committed to customer satisfaction and will address any concerns or inquiries promptly.

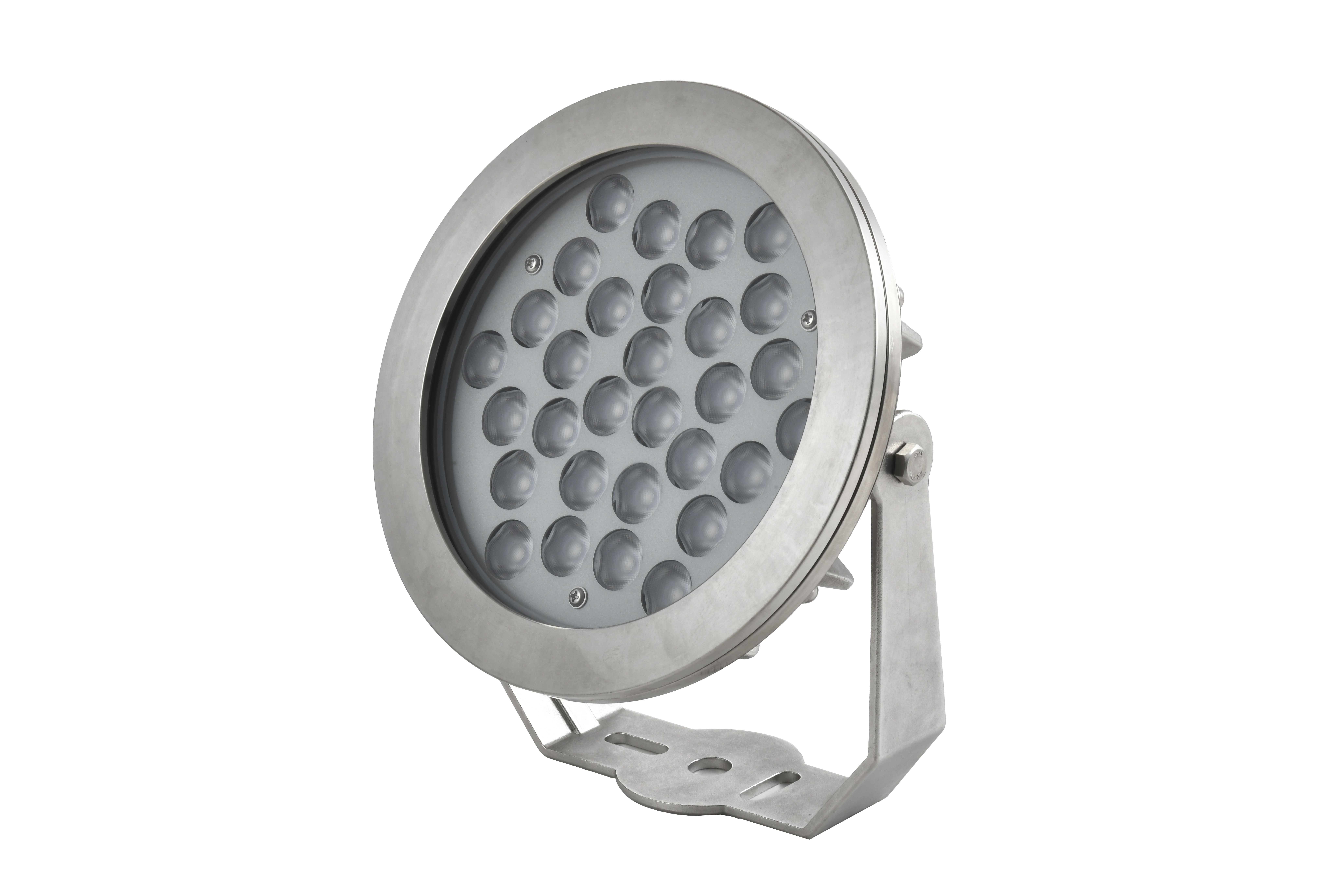

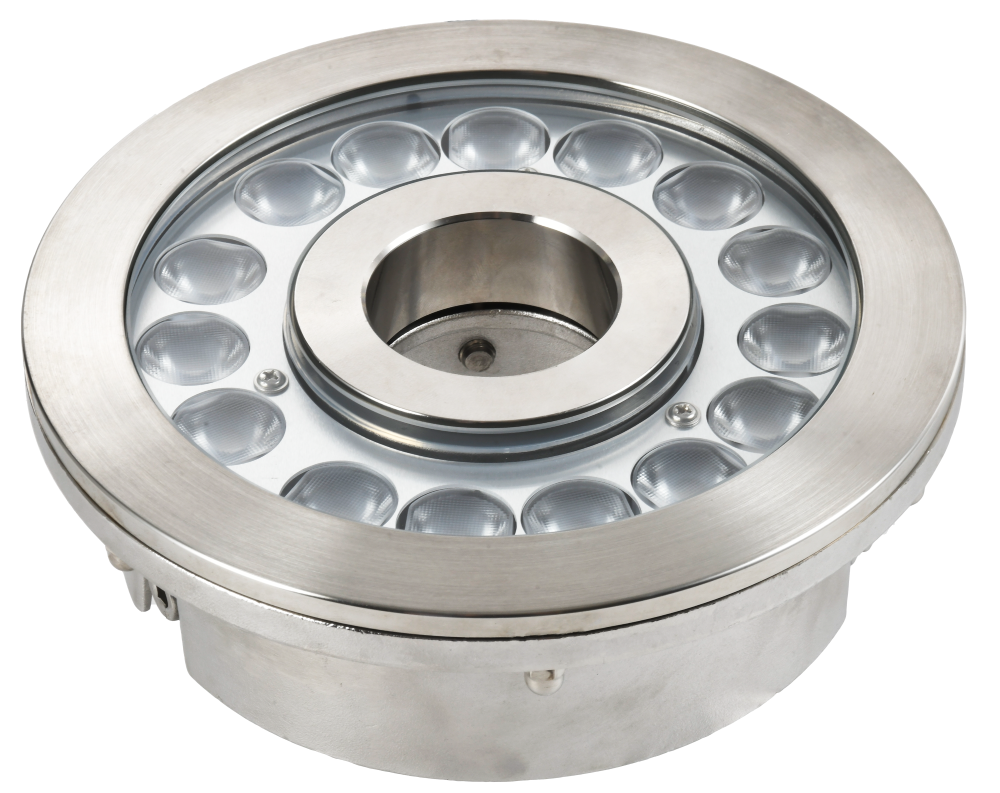

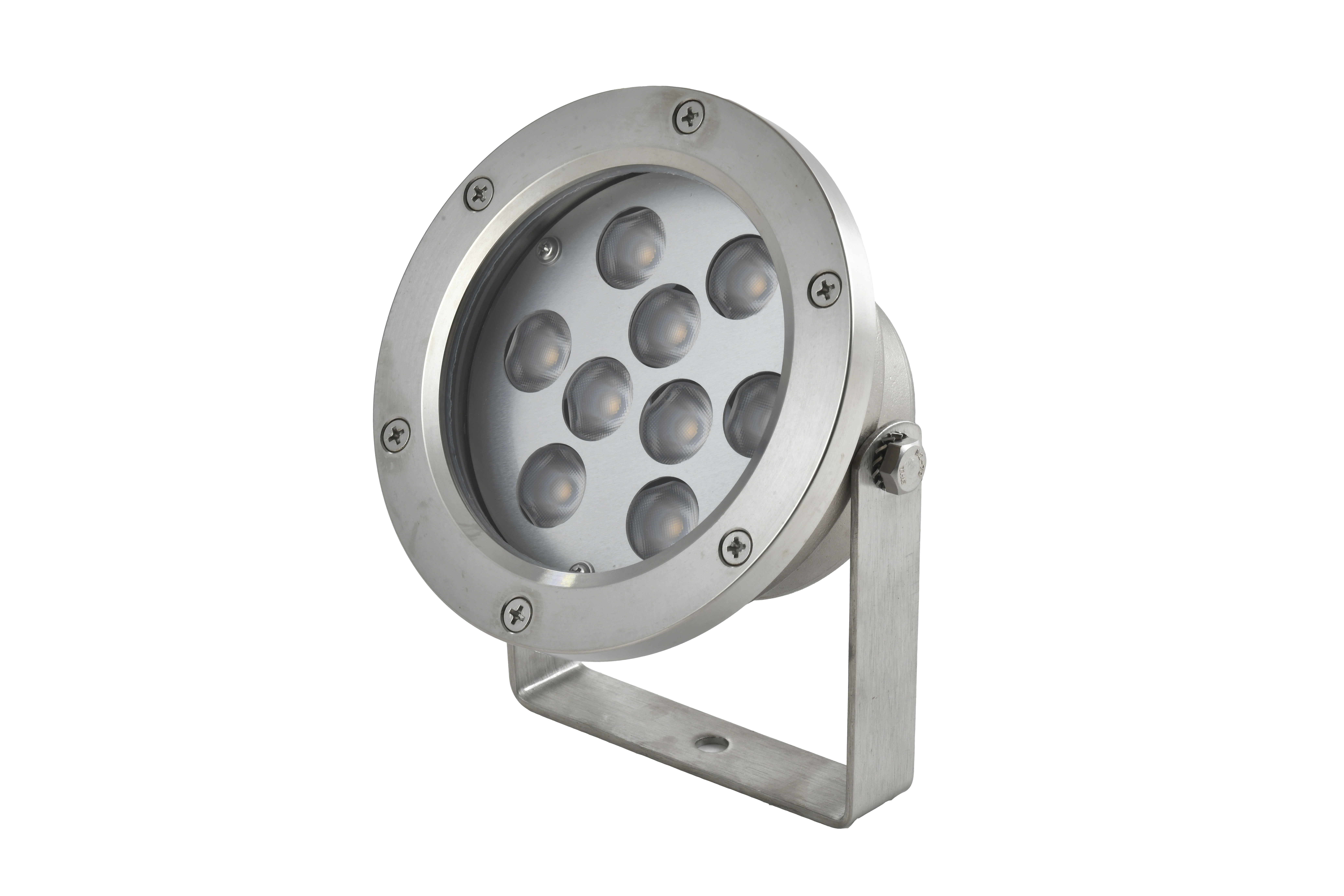

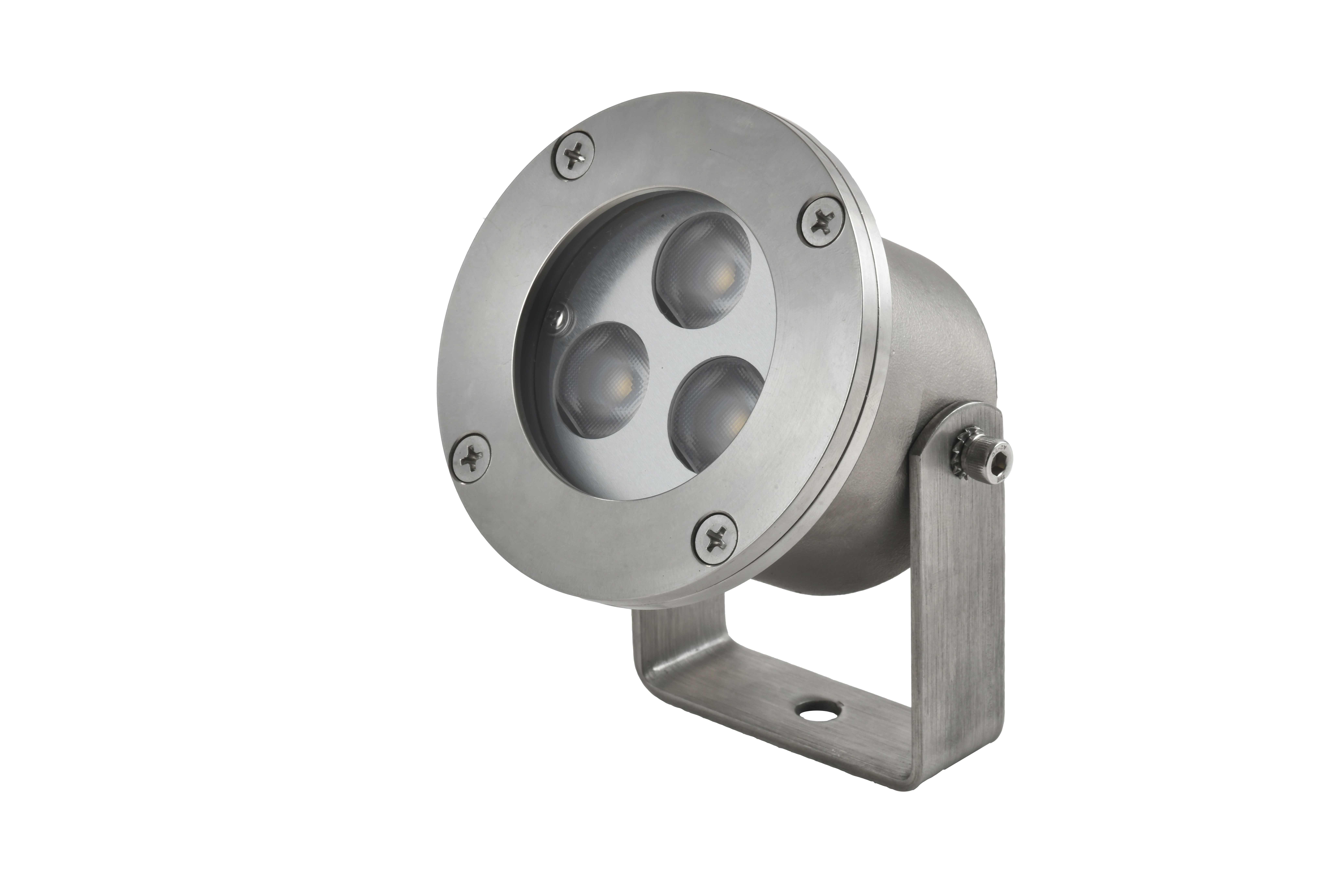

Recommend Products

Frequently Asked Questions

Q How is the quality of the products guaranteed?

We always produce a pre-production sample before starting mass production, conduct strict incoming material inspections, and perform a final inspection before shipment to ensure top quality.

Q What types of products can I purchase?

We offer a wide range of high-quality LED underwater lights, fountain lights, fountain nozzles, fountain equipment, ground lights, LED tiles, wall lights, and wall washers, among other options.

Q What makes your products different from other suppliers?

We specialize deeply in the LED outdoor lighting and fountain industry. With years of focus and expertise in both sectors, we are able to provide complete one-stop integrated solutions.

Q What delivery terms and payment options do you support?

We support delivery terms such as FOB, CFR, CIF, and EXW. Accepted payment methods include T/T, L/C, PayPal, and Western Union. We communicate effectively and handle inquiries globally.

Q What are the key operating limits for these underwater lights?

These underwater lights are designed to operate in water temperatures between -20°C and 40°C, and should be installed at a depth of less than 2 meters for optimal performance and safety.

Q What are the key characteristics of the housing and PCB design?

The standard housing is constructed from high-grade Stainless Steel AISI 304 (with SUS 316L available for custom orders) and features tempered glass. The PCB features an aluminum core with a high thermal conductivity coefficient of ≥2.0w/mk to maximize heat dissipation.
